Mass Transit Series
Mass Transit Displays
Passenger information displays built for rolling stock and stations — above-door route maps, door-side screens, V-shaped ceiling displays, network diagram terminals and driver’s cab monitors. Designed for continuous duty in sealed, vibrating, temperature-cycled environments.
In-carriage displays
Stretched-bar terminals for the space above doors and along carriage ceilings, where the display has to be read at a glance from standing height.

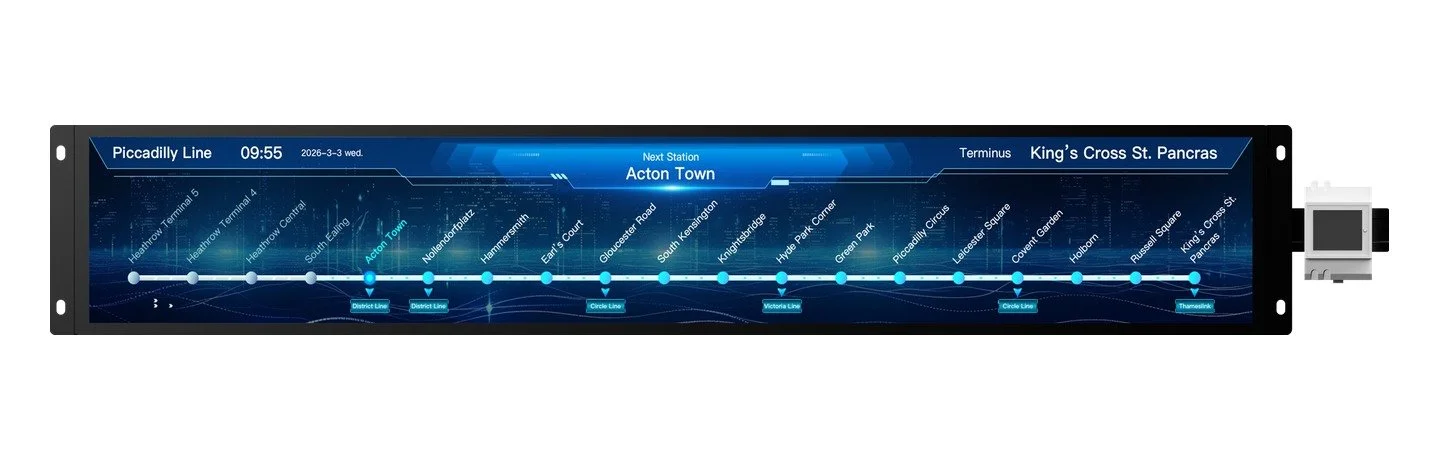

LCD Dynamic Route Map Display
- Full line diagram with live next-station and terminus
- Transfer signs, destination and interchange markers
- Date, time and carriage information zones
- 1288.5 × 305.6 × 65 mm overall

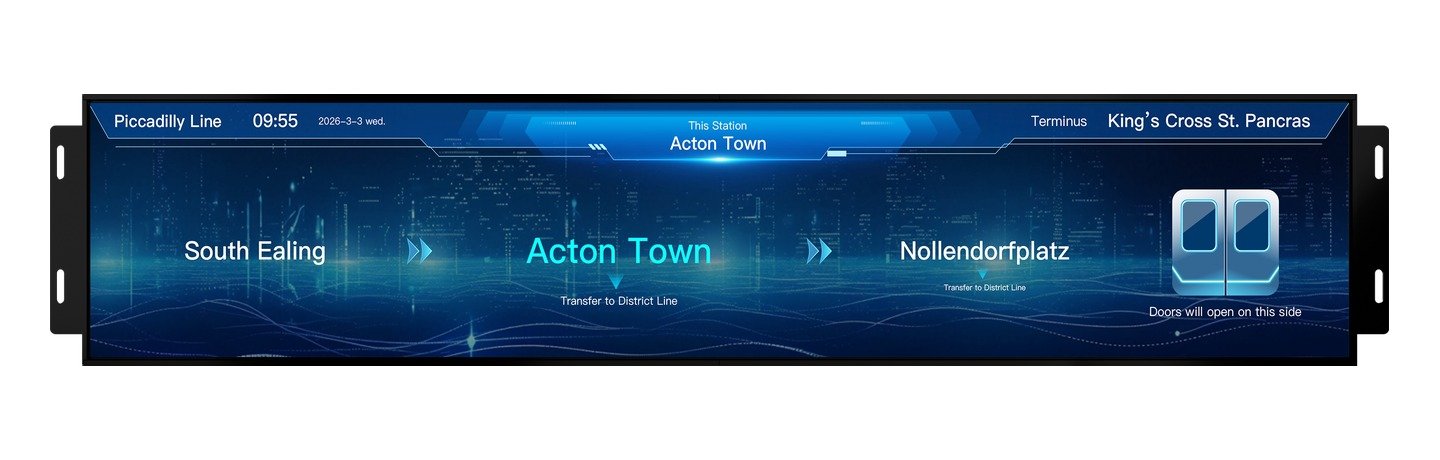

Door-Above Passenger Information Display
- Previous, current and next station in one view
- Door-opening side indicator
- Interchange prompts beneath each station
- 1186 × 240 × 58 mm overall
New — Mini LED local dimming
36.6″ zone-dimmed stretched terminal
Transit interfaces run on dark backgrounds almost all the time. A conventional edge-lit panel keeps the whole backlight on regardless, which lifts black levels and wastes power as heat inside a sealed enclosure. This terminal maps image content onto a Mini LED backlight and lights only the zones that need it — deeper blacks behind station names and alerts, and measurably less power drawn in exactly the scenes transit UIs spend their time in.
The range
Overall dimensions are taken from the production CAD and include mounting hardware where it forms part of the assembly.
| Model | Type | Panel | Overall size (mm) | Platform |
|---|---|---|---|---|
| PISD-DT485FD-HN | LCD dynamic route map | Stretched bar | 1288.5 × 305.6 × 65 | — |
| PISD-430XA8-HN | Door-above information display | 43″ stretched | 1186 × 240 × 58 | — |
| PISD-MT290XAR1TC-HN | V-shaped ceiling display | 29″, 1920 × 540, 1200:1, 500 cd/m² | 752.9 × 387.8 × 279.2 | Quad-core Cortex-A55, 2 GB / 8 GB |
| PISD-DT280CC5-HN | Door / platform screen | 28″ stretched, 731 × 164 mm glass | 732 × 169 face | Rockchip RK3568, M12 connectors |
| PISD-215QD6-HN | Network diagram terminal | 21.5″ | 510 × 350 × 55 | Quad-core 2.0 GHz Cortex-A55, 1.0T NPU |
| 36.6″ local dimming | Zone-dimmed stretched terminal | 36.6″, Mini LED backlight, 384 zones | 1075 × 169 × 89.8 | — |
Driver’s cab monitoring touch screens (10.4″–15.6″) and passenger-room media terminals (15″–27″) are available on request.
Tell us the carriage type, mounting position and screen size and we will come back with a drawing, specification and lead time.
