Fionexx passenger information displays are built for rolling stock and stations: above-door route maps, door-side screens, V-shaped ceiling displays and network diagram terminals. Designed for continuous duty in sealed, vibrating, temperature-cycled environments, with EN 50155 compliance, front-face IP54 protection, PCB conformal coating and M12 connectors.
The Fionexx mass transit range
Overall dimensions are taken from production CAD and include mounting hardware where it forms part of the assembly. Every unit is built for continuous duty in sealed, vibrating, temperature-cycled environments.

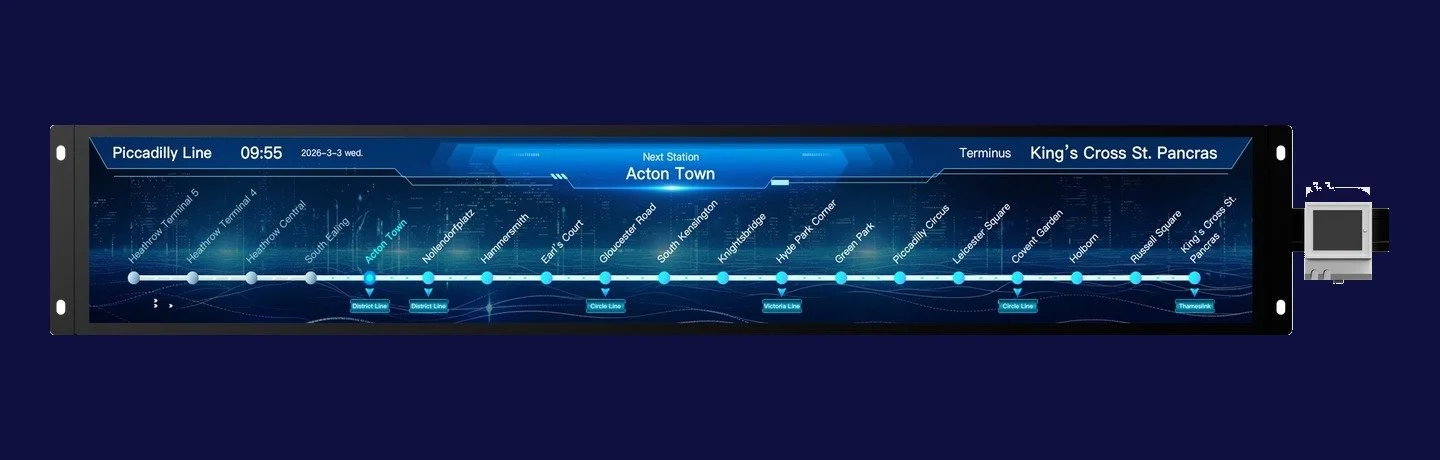

PISD-DT485FD-HNLCD Dynamic Route Map Display
Full line diagram with live next station, interchange markers and terminus.
PISD-430XA8-HNDoor-Above Information Display
Previous, current and next station in one view, with a door-opening side indicator.
PISD-MT290XAR1TC-HNV-Shaped Ceiling Display
29″ 1920 × 540 panel in a V-shaped ceiling housing, readable from both sides of the aisle.
PISD-DT280CC5-HNDoor and Platform Screen
Carriage range and live passenger-flow messaging on a 28″ stretched bar.
PISD-215QD6-HNNetwork Diagram Terminal
Terminus and next-station panels alongside media, driven by a quad-core Cortex-A55 with a 1.0T NPU.
| Model | Type | Panel | Overall size (mm) | Platform |
|---|---|---|---|---|
| PISD-DT485FD-HN | LCD dynamic route map | Stretched bar | 1288.5 × 305.6 × 65 | — |
| PISD-430XA8-HN | Door-above information display | 43″ stretched | 1186 × 240 × 58 | — |
| PISD-MT290XAR1TC-HN | V-shaped ceiling display | 29″, 1920 × 540, 1200:1, 500 cd/m² | 752.9 × 387.8 × 279.2 | Quad-core Cortex-A55, 2 GB / 8 GB |
| PISD-DT280CC5-HN | Door and platform screen | 28″ stretched, 731 × 164 mm glass | 732 × 169 face | Rockchip RK3568, M12 connectors |
| PISD-215QD6-HN | Network diagram terminal | 21.5″ | 510 × 350 × 55 | Quad-core 2.0 GHz Cortex-A55, 1.0T NPU |
| 36.6″ local dimming | Zone-dimmed stretched terminal | 36.6″, Mini LED backlight, 384 zones | 1075 × 169 × 89.8 | — |
Driver’s cab monitoring touch screens (10.4″–15.6″) and passenger-room media terminals (15″–27″) are available on request.
36.6″ Mini LED zone dimming
Transit interfaces run on dark backgrounds almost all the time. A conventional edge-lit panel keeps the whole backlight on regardless, lifting black levels and wasting power as heat inside a sealed enclosure. This terminal maps image content onto a Mini LED backlight and lights only the zones that need it — deeper blacks behind station names and alerts, and measurably less power drawn in exactly the scenes transit interfaces spend their time in.
